GEMENI 9 -- (June 3-6, 1966)





GEMINI 9 PRIME AND BACKUP CREWS. SADLY, THE PRIME CREW OF ELLIOT SEE AND CHARLIE BASSETT WERE
KILLED IN A TRAINING FLIGHT PREPARING FOR THE MISSION
.

See and Bassett were both killed when their plane crashed into a McDonnell aircraft hangar in St. Louis on February 28, 1966. Ironically, the hangar was the very building where the Gemini IX spacecraft was being built. So, Tom Stafford and Gene Cernan became the crew for Gemini 9. Due to the rotation sequence of Astronaut crews, this outcome essentially determined who would be the first crew to land on the moon!

Gemini 9 was essentially a repeat of previous missions. NASA had to have the experience of docking two spacecraft in orbit successfully, and carrying out an EVA while the vehicles were docked. This was a prime requirement for moving to Apollo.

Things did not go well on this flight either, and Gene Cernan was lucky to return alive.

The first launch attempt of Gemini 9A was on June 1. The Agena ATDA module had launched perfectly into a 298 kilometre orbit, though telemetry from it indicated that the launch shroud had failed to open properly. But the Gemini spacecraft was not able to launch the same day as planned. At T-3 minutes, the ground computers could not contact the Gemini computers for some reason and the 40 second launch window opened and closed without the launch.

The second launch attempt went perfectly with the spacecraft entering into orbit.

Rendezvous

Their first sight of the Rendezvous module came 3 hours and 20 minutes into the mission when they were 93 km away. They noted that they could see the flashing lights on the ATDA designed to aid identification from a distance. This made them hope that the launch shroud had in fact been jettisoned and that the telemetry was wrong.

As they got closer they found that in fact the shroud had half come off. Stafford described "It looks like an angry alligator out here rotating around". He asked if maybe he could use the spacecraft to open the 'jaws' but the ground decided against it.

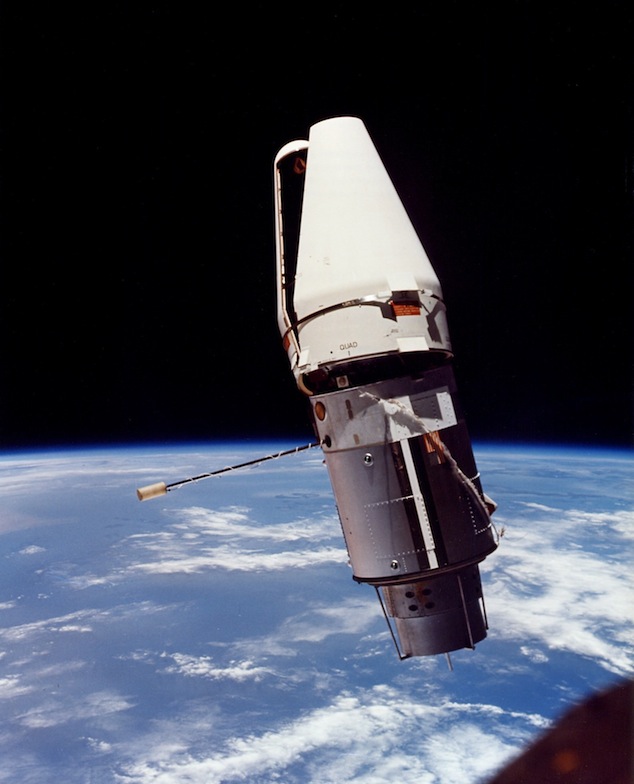

The Angry Alligator


THE ATDA, a.k.a. THE ANGRY ALLIGATOR, AS SEEN FROM GEMINI IX.


The crew described how the shroud's explosive bolts had fired, but two neatly taped lanyards were holding the shroud together. It was decided that it would be too dangerous for an astronaut to cut the lines, as there were too many sharp edges around.

The reason for the lanyards was soon discovered. Douglas built the shroud, but Lockheed attached it to the rocket, while McDonnell built the ATDA.

A Douglas engineer had made a practice run with the McDonnell crew but didn't give them instructions on the final procedures which involved the lanyards.

The McDonnell crew had the Douglas instructions for this procedure which said, "See blueprint", but there was no blueprint.

So the McDonnell technicians decided to tape down the loose lanyards as it seemed like the sensible thing to do.

The crew then did some planned rendezvous practice that involved them moving away from the ATDA by firing their thrusters and then practising approaching from below the target. They then got some much needed food and rest.

On the second day of the mission, they again approached the ATDA, this time from above. Once they were stationkeeping along side, they were given permission for their EVA. But they were tired and Stafford didn't want to waste fuel keeping himself near the ATDA during the EVA when there was little they could do with it. So it was decided to postpone the EVA until the third day.

EVA

As well as the plan for docking there was also a planned EVA by Cernan. The plan was for him to move to the rear of the spacecraft and strap himself into the Air Force's Astronaut Maneuvering Unit (AMU). This was the first 'rocket pack' and a predecessor of the Manned Maneuvering Unit used by Shuttle astronauts in the 1980s.

It had its own propulsion, stabilization system, oxygen and telemetry for the biomedical data and systems. It used hydrogen peroxide for propellant, and because it produced extremely hot gases, Cernan's spacesuit was modified with "pants" made of woven steel known as "Chromel-R," which was later used on the gloves and moon walking boots on Apollo spacesuits.

This material was developed by the Air Force Systems Command for use in high-temperature deceleration devices for aerospace systems.

(The current MMU uses nitrogen gas, which remains cold when vented.)

However, Cernan's space walk was troubled from the start. His visor fogged, he sweated profusely and struggled with his tasks, and he had problems moving in microgravity. Everything took longer than expected, and Cernan had to go inside before getting a chance to fly the AMU.

The device was not finally tested in space until a modified version called the Manned Maneuvering Unit (MMU) was flown by astronaut Bruce McCandless on Shuttle Mission STS 41B in 1984 18 years later.

The AMU never flew on Gemini as Cernan's experience tempered these demands. In retrospect it is a bit surprising that considering the consummate detail that was employed in the design of spacecraft and mission planning that (a) such an ambitious mission would be planned as only the second US space walk and (b) so little attention was paid to handholds and astronaut positioning.

Aside from the lack of handholds, the Gemini spacesuit was cooled by air. When an astronaut had an increased work load he began to sweat and in the confined space of a suit the cooling system would become overwhelmed and the visor would fog.

The astronaut would then be effectively blind because he had no way of wiping off the faceplate.

In future Gemini EVA's, the work loads of the astronauts was reduced, but it was clear that during lunar exploration workloads could be significant and changes were made to ensure that the Apollo EVA suit would be water cooled.

This was accomplished by having the astronaut wear a garment that contained many thin tubes that circulated water near the skin. It was very effective and there were very few cases where astronauts used the "High" Cooling selection even though they were working hard and on the moon in a 100C sun.

On the third day Cernan finally reached the rear of the spacecraft and began to check and prepare the AMU. This took longer than planned due to lack of hand and foot holds. He was unable to gain any leverage which made it hard to turn valves or basically any movement. All this was made worse when after sunset, his faceplate fogged up. His pulse soared to about 195 beats per minute. The flight surgeon on the ground feared he would lose consciousness.

At this point Cernan decided that there was considerable risk in continuing the EVA. He had poor visibility from within his spacesuit and had found that he could not move very well.

He would have to disconnect himself from the umbilical that attached him to the Gemini (though would still be attached by a longer thinner lead), after he had connected himself to the AMU. But when he had finished with the AMU he would somehow have to take the thing off with one hand, while the other held onto the spacecraft. He decided to cancel the rest of the EVA, with Tom Stafford and the Mission Controllers concurring.

He managed to move himself back to the cockpit and Stafford held onto his legs to give him a rest.

After trying to remove a mirror mounted to the side of the spacecraft, his suit cooling system overheated and his faceplate fogged up completely, denying him any vision. He and Stafford managed to get the hatch closed and repressurised.

Cernan had spent 128 minutes outside the spacecraft.

Stafford has said in a 2001 interview that there was a real concern that Cernan would not be able to get back into the capsule. As it would not have been acceptable for Stafford to cut Cernan loose in orbit he stated that the plan was to make re-entry with the astronaut still attached by his umbilical - which in and of itself would mean risking Cernan's body pulling the spacecraft off-course during reentry, or entangling with the parachute prior to splashdown.

As well as the rendezvous and EVA, the other major objective of the mission was to carry out seven experiments. The only medical experiment was M-5, which measured the astronauts reactions to stress by measuring the intake and output of fluids before, during and after the flight.

Experiments

There were photography experiments:

S-1 hoped to image the Zodiacal light during an EVA, but this was changed to inside the spacecraft after the problems encountered by Cernan.

S-11 involved the astronauts trying to image the Earth's airglow in the atomic oxygen and sodium light spectra. They took 44 pictures as part of this experiment with three being of actual airglow.

S-10 had hoped to retrieve a Micrometeorite Collector from the ATDA, though this failed after they were unable to dock with it. They were able to image it though during their close approaches. Instead they were able to recover the collector from the Gemini spacecraft (S-12).

D-12 also failed as it was an investigation of controlling the AMU.

The last experiment was D-14 which was UHF/VHF Polarization. This was an extendable antenna mounted on the adapter section at the rear of the spacecraft. It was hoped to obtain information about communication through the ionosphere. Six trials of this were performed but the antenna was broken by Cernan during his EVA.

Reentry

The day of the EVA -- June 6, 1966, was also their last in space. On their 45th revolution of the Earth, they fired the retrofire rockets that slowed them down so that they would reenter. This time the computer worked perfectly, meaning they landed only 700 metres from the planned landing site and were close enough to see the prime recovery ship, the USS Wasp. The splashdown happened closer to the recovery ship than any other manned American spacecraft.

After the mission it was decided to set up a Mission Review committee. Their job was to make sure that the objectives planned for each mission were realistic and that they had a direct benefit for Apollo. Obviously, things were going at too fast a pace, and were not going well.

The Gemini 9A mission was supported by the following US Department of Defense resources: 11,301 personnel, 92 aircraft and 15 ships.

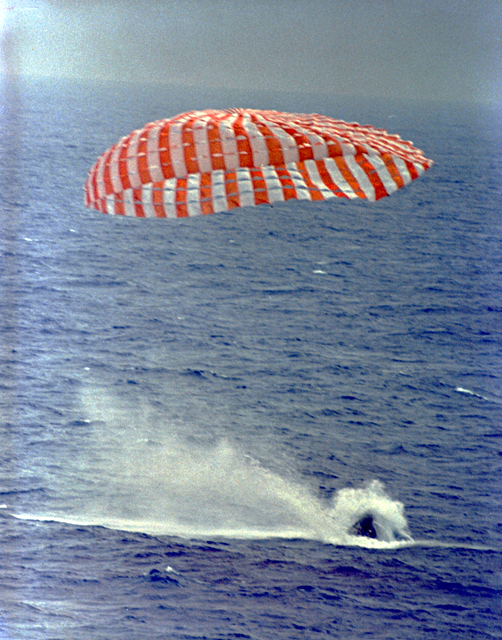

Gemini 9 Splashdown

GEMINI IX SPLASHDOWN.
